“K线剩余时间”,显示当前K线已用和剩余时间 +品种信息面板 MT4免费工具!

指标下载 qchaos.009 3个月前 (11-11) 7079 复制链接

指标名称:K线剩余时间

版本:MT4 ver. 2.01(指标)

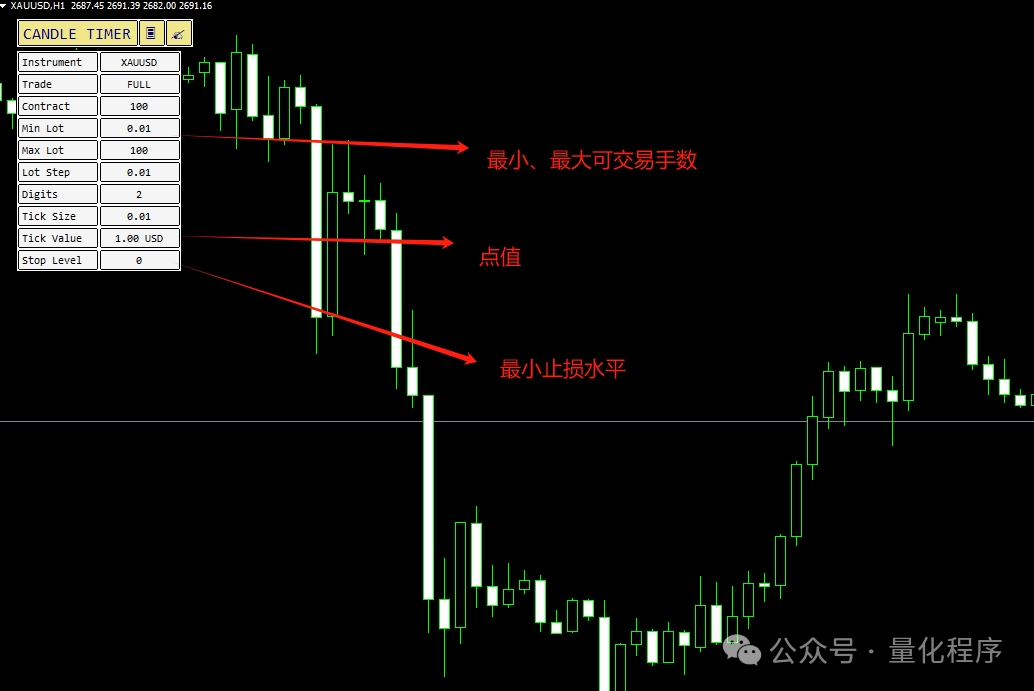

K线剩余时间该指标提供了当前K线剩余时间统计,以及其他市场的详细信息视图,显示当前交易品种的基本交易状态、合约规格、价格信息等。通过在图表上创建面板,用户可以方便地查看实时的市场数据,例如买卖价格、点差、合约大小等,还包括每根K线的开始时间和剩余时间等信息。

“K线剩余时间”,显示当前K线已用和剩余时间 +品种信息面板 MT4免费工具!

“K线剩余时间”,显示当前K线已用和剩余时间 +品种信息面板 MT4免费工具!

功能:

  • 市场交易状态:显示当前市场的交易模式(例如是否只允许买入、卖出、仅平仓等)。
  • 合约信息:包括合约大小、最小/最大交易量、点值、止损限制等。
  • 价格信息:显示当前的买入价格、卖出价格、点差、Tick大小及Tick值。

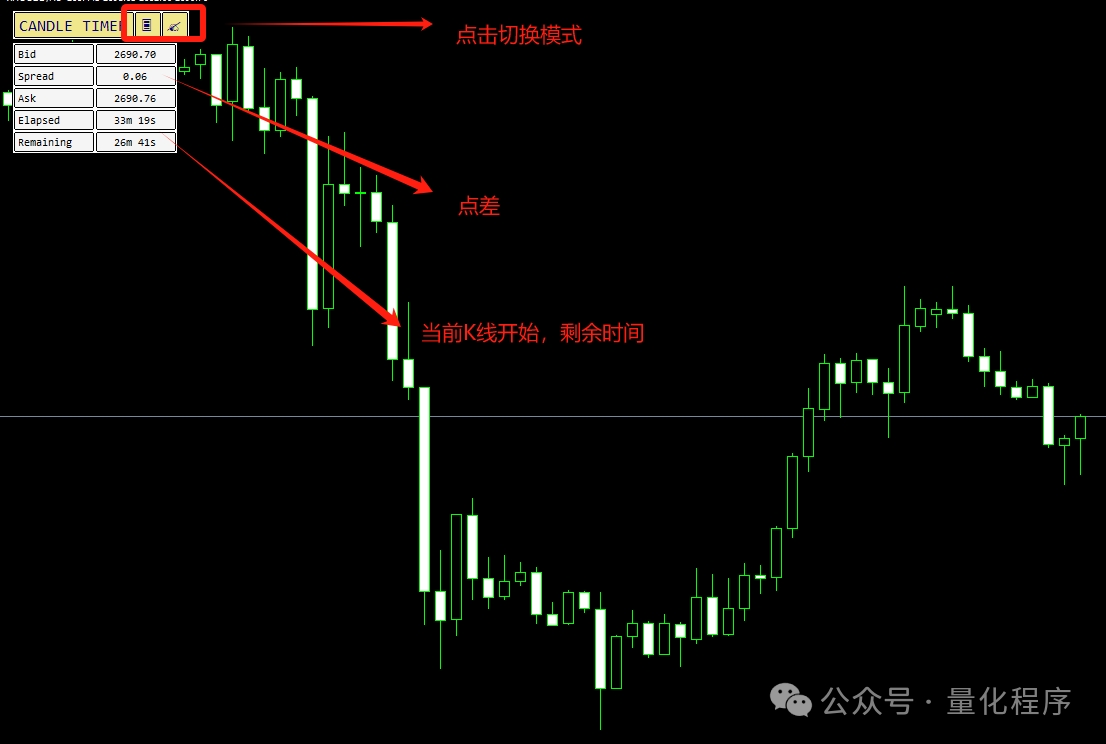

  • 时间信息:显示当前K线的已过时间与剩余时间,帮助交易者更好地把握市场节奏。

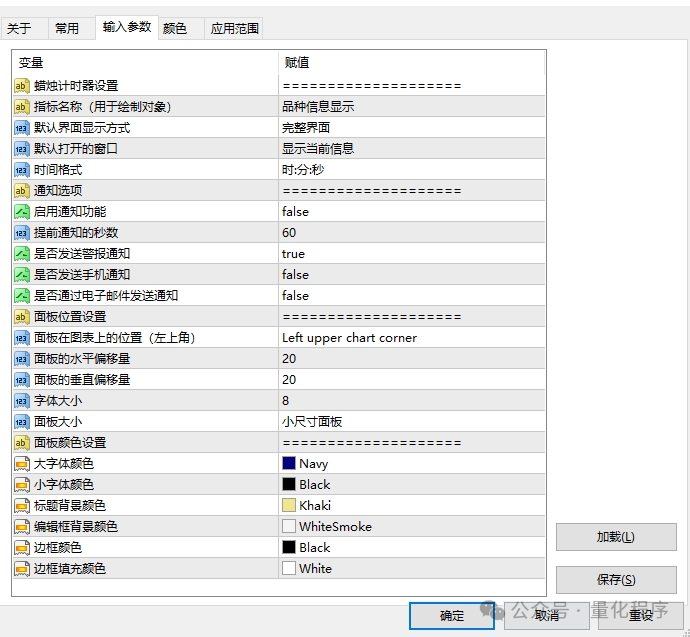

参数:

“K线剩余时间”,显示当前K线已用和剩余时间 +品种信息面板 MT4免费工具!

部分代码展示:

//+——————————————————————+
//| K线剩余时间.mq4 |
//| Copyright © 2009-2024, http://www.QChaos.com |
//| https://www.qchaos.com/ |
//+——————————————————————+

property copyright "Copyright © 量化混沌, http://www.qchaos.com"

property link "https://www.qchaos.com"

property version "2.01"

property strict

property description "———————————————"

property description "EA、指标公式分享"

property description "EA、指标编写业务承接"

property description "———————————————"

property description "更多资源,关注公众号:量化程序"

property description "微 信:QChaos001"

property description "手机号:134-8068-5281"

property description "———————————————"

property description "显示关于交易品种的详细信息、上根蜡烛的时间间隔,以及到下一根蜡烛的倒计时。"

property description "提供警报选项。"

property indicator_chart_window

include <MQLTA Utils.mqh>

enum ENUM_PANEL_SIZE
{
PANEL_SIZE_SMALL = 1, // 小尺寸面板
PANEL_SIZE_MEDIUM = 2, // 中等尺寸面板
PANEL_SIZE_LARGE = 3 // 大尺寸面板
};

enum ENUM_DEFAULT_OPEN
{
NOTHING = 0, // 无操作
DETAILS = 1, // 显示详细信息
CURRENT = 2 // 显示当前信息
};

enum ENUM_DISPLAY_MODE
{
MINIMAL = 0, // 仅显示倒计时
FULL = 1 // 完整界面
};

enum ENUM_TIMEFORMAT
{
HMS = 0, // 时:分:秒
COLON = 1, // 时:分:秒 格式 (HH:MM:SS)
};

input string Comment_1 = "===================="; // 蜡烛计时器设置
input string IndicatorName = "品种信息显示"; // 指标名称(用于绘制对象)
input ENUM_DISPLAY_MODE DefaultDisplay = FULL; // 默认界面显示方式
input ENUM_DEFAULT_OPEN DefaultOpen = CURRENT; // 默认打开的窗口
input ENUM_TIMEFORMAT TimeFormat = HMS; // 时间格式
input string Comment_2 = "===================="; // 通知选项
input bool EnableNotify = false; // 启用通知功能
input int SecondsNotice = 60; // 提前通知的秒数
input bool SendAlert = true; // 是否发送警报通知
input bool SendApp = false; // 是否发送手机通知
input bool SendEmail = false; // 是否通过电子邮件发送通知
input string Comment_3 = "===================="; // 面板位置设置
input ENUM_BASE_CORNER Corner = CORNER_LEFT_UPPER; // 面板在图表上的位置(左上角)
input int Xoff = 20; // 面板的水平偏移量
input int Yoff = 20; // 面板的垂直偏移量
input int FontSize = 8; // 字体大小
input ENUM_PANEL_SIZE PanelSize = PANEL_SIZE_SMALL; // 面板大小
input string Comment_4 = "===================="; // 面板颜色设置
input color LargeFontColor = clrNavy; // 大字体颜色
input color SmallFontColor = clrBlack; // 小字体颜色
input color CaptionBGColor = clrKhaki; // 标题背景颜色
input color EditsBGColor = clrWhiteSmoke; // 编辑框背景颜色
input color BorderColor = clrBlack; // 边框颜色
input color BorderFillColor = clrWhite; // 边框填充颜色

int CornerSignX = 1;
int CornerSignY = 1;

string HoursString = "";
string MinutesString = "";
string SecondsString = "";

string Font = "Consolas";

bool DetailsOpen = false;
bool CurrentOpen = false;
bool NotifiedThisCandle = false;

double DPIScale; // Scaling parameter for the panel based on the screen DPI.
int PanelMovX, PanelMovY, PanelLabX, PanelLabY, PanelRecX;
int DetGLabelX, DetGLabelEX, DetGLabelY, DetButtonX, DetButtonY;
int CurGLabelX, CurGLabelEX, CurGLabelY, CurButtonX, CurButtonY;

int OnInit()
{
IndicatorSetString(INDICATOR_SHORTNAME, IndicatorName);

CleanChart();

if (Corner == CORNER_LEFT_UPPER)
{
CornerSignX = 1;
CornerSignY = 1;
}
else if (Corner == CORNER_LEFT_LOWER)
{
CornerSignX = 1;
CornerSignY = -1;
}
else if (Corner == CORNER_RIGHT_UPPER)
{
CornerSignX = -1;
CornerSignY = 1;
}
else if (Corner == CORNER_RIGHT_LOWER)
{
CornerSignX = -1;
CornerSignY = -1;
}

DPIScale = (double)TerminalInfoInteger(TERMINAL_SCREEN_DPI) / 96.0;

PanelMovX = (int)MathRound(26 DPIScale PanelSize);
PanelMovY = (int)MathRound(26 DPIScale PanelSize);
PanelLabX = (int)MathRound(120 DPIScale PanelSize);
PanelLabY = PanelMovY;
PanelRecX = (PanelMovX + 2) * 2 + PanelLabX + 2;

DetGLabelX = (int)MathRound(80 DPIScale PanelSize);
DetGLabelEX = (int)MathRound(80 DPIScale PanelSize);
DetGLabelY = (int)MathRound(20 DPIScale PanelSize);
DetButtonX = (int)MathRound(90 DPIScale PanelSize);
DetButtonY = DetGLabelY;

CurGLabelX = (int)MathRound(80 DPIScale PanelSize);
CurGLabelEX = (int)MathRound(80 DPIScale PanelSize);
CurGLabelY = (int)MathRound(20 DPIScale PanelSize);
CurButtonX = (int)MathRound(90 DPIScale PanelSize);
CurButtonY = DetGLabelY;

if (TimeFormat == HMS)
{
HoursString = "h ";
MinutesString = "m ";
SecondsString = "s";
}
else if (TimeFormat == COLON)
{
HoursString = ":";
MinutesString = ":";
SecondsString = "";
}

if ((DefaultDisplay == 1) && (DefaultOpen == 1)) DetailsOpen = true;
if ((DefaultDisplay == 1) && (DefaultOpen == 2)) CurrentOpen = true;
if (DefaultDisplay == 1) CreateMiniPanel();
if (DefaultDisplay == 0) ShowCountdown();
if (DefaultDisplay == 0)
{
DetailsOpen = false;
CurrentOpen = false;
}

EventSetTimer(1);

return INIT_SUCCEEDED;
}
